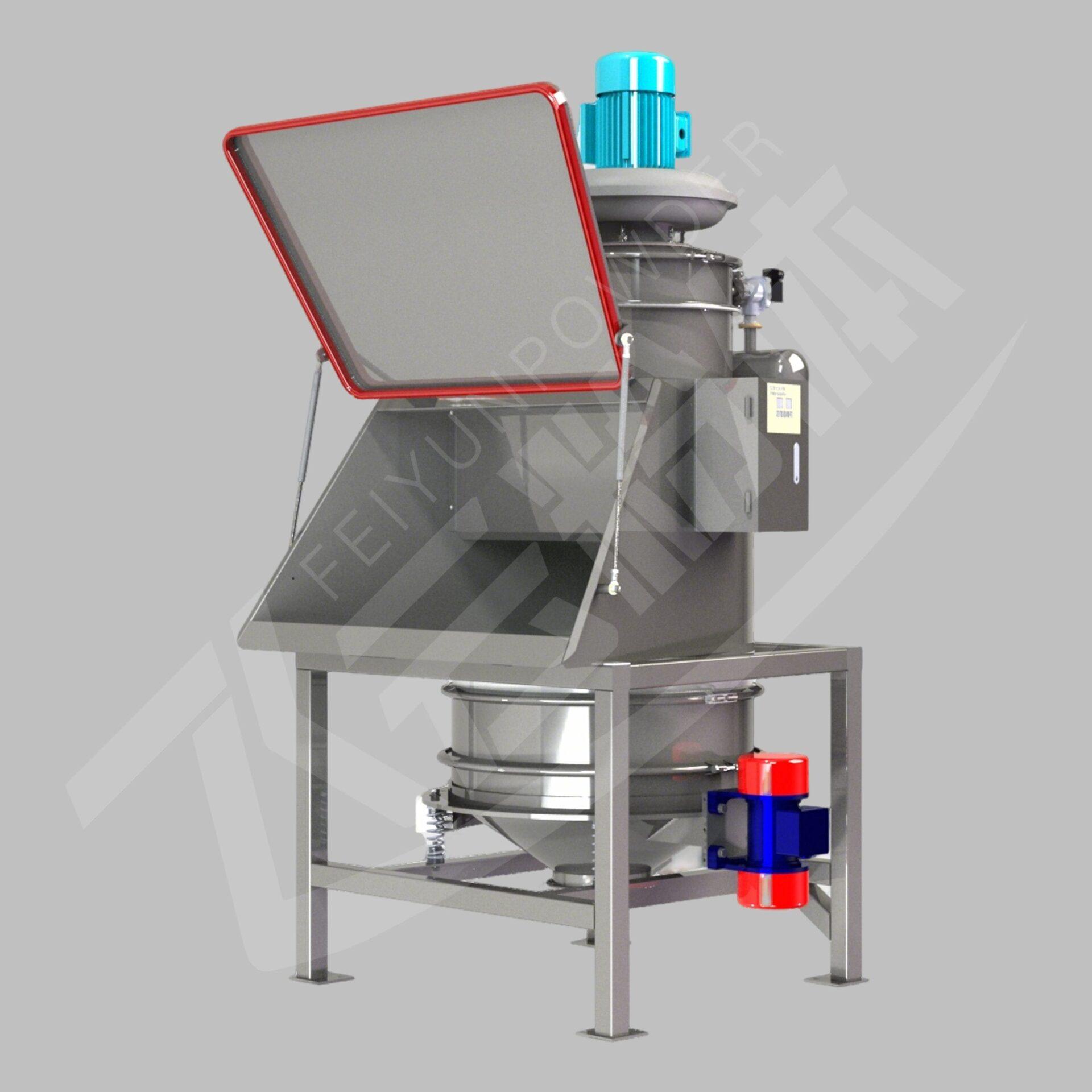

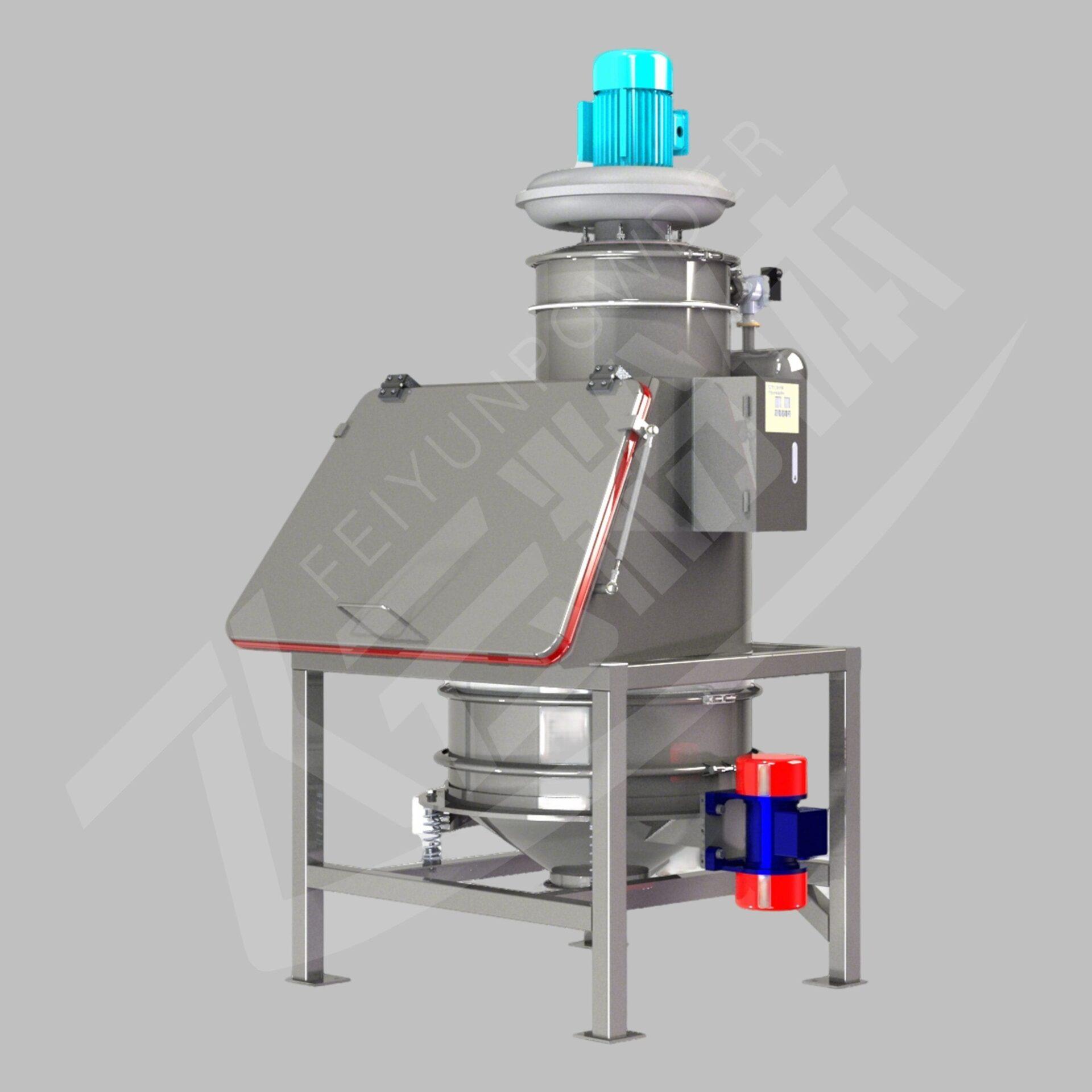

Dust-free feeding station

The dust-free feeding station is suitable for industries such as pharmaceuticals, chemicals, food, and battery materials, where it handles the unpacking, feeding, sieving, and discharging of small and medium-sized bagged materials. During unpacking, the dust collection fan prevents material dust from spreading. When materials are unpacked and fed into the next process, operators simply manually unpack and pour the materials into the system. The materials then pass through a vibrating sieve (safety screen), which blocks large particles and foreign objects, ensuring that only qualified particles are discharged.

The dust-free feeding station consists of a feeding platform, a discharge hopper, a dust removal system, a vibrating sieve, and other components.

技术参数
Model TLZ-2 TLZ-3
Dust Collection Fan 1.1 KW
Vibration Motor 0.12 KW 0.25 KW
Dust Filter 0.4 μm Membrane-coated Polyester Filter Cartridge
Screen Area 0.33 m² 0.66 m²
